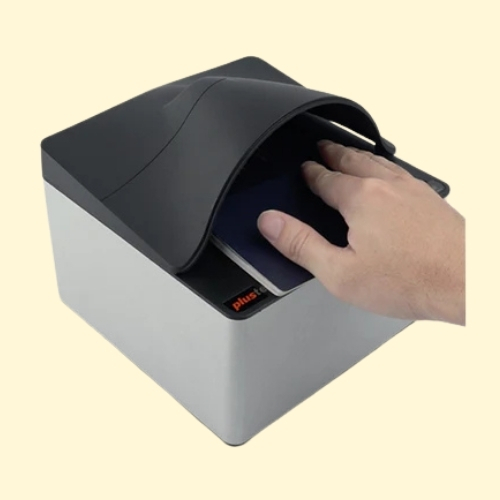

The SecureScan X50 utilizes an image sensor with Visible illumination, for quick image capturing, OCR text reading, and visual security features authentication, of ID cards, such as driver’s licenses, health insurance cards, and other identification documents. It is a fast and easy way to scan passports and ID cards. It includes all the software and hardware needed to capture and extract passport information.
Key Features:
- Fast Scanning: Scanning takes about 1 second per side Passports and IDs are automatically detected and captured. There is no need to press any buttons or click on screens
- Data Capture: Capture multiple high resolution images under different illuminations automatically once placed on the scanner.
- Compatible: Compliant with ICAO Doc 9303 standard for machine readable travel documents and supports TD1/TD2/TD3/TDV sized document scanning.
Technical Specification:
- Image Sensor:CMOS
- Light Source:White LED
- Optical Resolution:5 Megapixels
- Focus: Fixed
- Scan Modes:Color: 24-bit Input; 24-bit Output
- Scanning Speed: Approx. 1 sec (Color Mode, Full Page passport image capture)
- Scanning Area (W x L):Maximum: 127 x 95 mm (5″ x 3.74″)
- Acceptable Paper Sizes (W x L): Maximum: 125 x 88 mm (4.92″ x 3.46″)
- Action Button:Dual Auto Detect Sensors
- Power Supply:USB Power: 5V / 0.5A
- Interface:USB 2.0
- Net Weight:1.7 Kgs
- Dimensions (W x D x H):Without Cover: 200 x 200 x 119 mm, With Cover: 200 x 200 x 190 mm
- 1 Year Warranty
