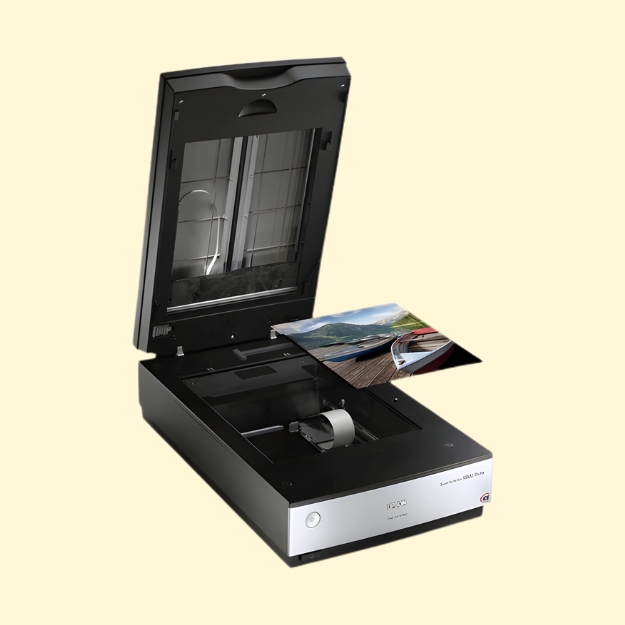

Epson V800 Scanner

Perfect for helping life-long photo enthusiasts and photographers convert their film and images into high-quality digital media

Convert all your treasured memories to digital using this professional-quality, 6400dpi scanner. The V800 requires virtually no warm up time and includes high-quality film holders to help deliver fast, high-quality results. For improved clarity, dust and scratches are automatically removed from film and photos.

Choice of resolution
The V800 features a dual lens system that automatically selects the optimal lens, with up to 4800dpi optical resolution for reflective photo scanning and 6400dpi when scanning using film holders.

Scan from any source
Scan 35mm strips and slides as well as medium format and 4×5 inch large format film in sharp focus thanks to the improved film holders with their adjustable height control and rigid design. The V800 also supports non-standard film formats up to 8×10 inch when placed directly on the scanner glass.

Cleans-up images
Digital ICE technologies automatically removes imperfections such as dust, hair, scratches and fingerprints from both film and photos to restore images to their former glory with the minimum of effort.

The right tone
Take advantage of excellent tone reproduction with 4.0 DMax optical density.The V800 can detect the exact tonal range of the original, making sure the brightest and darkest areas of images are accurately reproduced to reveal impressive detail and dynamic range.

Advanced software
As well as Epson Scan, the V800 comes with SilverFast SE 8 software for advanced scanning features.

Save time
Epson’s ReadyScan technology features an LED light source with a warm-up time of less than one second, so scanning can start almost instantly. With a very low power consumption it saves energy too.

Features

• Scans everything: Slides, film, medium format & prints
• Dual lens system: Swaps between 6400dpi for slides and film, and 4800dpi for photos
• Removes imperfections: Digital ICE Technologies cleans-up old film and photos1
• Dynamic range: Accurately reproduce tonal range and gradation of the original
• Quick start: Warms-up in less than one second

Specifications

Technology

• Scanner Type: Flatbed Scanner
• Scanning Resolution: 6,400 DPI (Horizontal x Vertical)
• Dual Lens System – scanning resolutions: High Resolution Lens 4,800x 9,600 DPI, Super Resolution Lens 6,400x 9,600 DPI
• Optical Density: 4 Dmax
• Scanning Range (maximum): 216 mm x 297 mm (Horizontal x Vertical)
• Paper Formats: A4
• Color Depth: Input: 48 Bits Color, Output: 48 Bits Color
• Application: High Resolution

Scanner

• Optical Sensor: Matrix CCD with Micro Lens
• Light Source: White LED, IR LED with ReadyScan LED Technology
• Scanning Method: Fixed documents and moving carriage
• Output Resolution: 25~12,800 (1 dpi step) DPI

Scan Speed

• Reflective Scanning: Color (speed/best): 12/ 15 s/page, A4 Preview: 6 s/page
• Film Scanning: 35mm negative film, 4800dpi: 67 s – Best, 35mm negative film, 2400dpi: 37 s – Best, 35mm positive film, 4800dpi: 70 s – Best, 35mm positive film, 2400dpi: 40 s – Best

Paper / Media Handling

• Supported Film – TPU: 35mm strip film: 3 x 6 frames, 35mm slides: 12 frames, 120/220 Medium format (Max. 6 x 20cm): 1 frame, 5 x 4 inch: 1 frame, up to 203 x 254mm (8 x 10 inch) with film area guide, up to 149 x 247mm with Digital ICE

Scanning Features

• Image Improvement: Grain reduction, Dust removal, Print Image Matching II, Color palette tool for Easy Color Fix, Backlight Correction, Colour Restoration, Unsharp Mask with Noise Reduction, De-Screening with Document Type Optimizer, Digital ICE Technologies (for film and photo), Tone Curve Adjustment with Histogram

Connectivity

• Interfaces: Hi-Speed USB – compatible with USB 2.0 specification

General

• Supply Voltage: AC 220 V – 240 V, 50 Hz – 60 Hz
• Product Dimensions: 503‎ x 308 x 152 mm (Width x Depth x Height)
• Product Weight: 6.6 kg
• Compatible Operating Systems: Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP SP2 or higher
