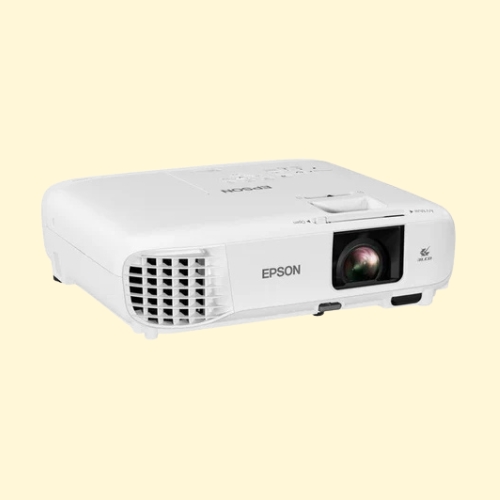

The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
- 3,800 Lumens
- 3LCD technology for equal white & colour light output
- WXGA resolution and 4:3 performance
- Long lamp life up to 17,000 hours in ECO mode
- Easy setup and positioning flexibility
- HDMI connectivity
Specification:
Technology:
- Projection Technology:RGB liquid crystal shutter projection system (3LCD)
Connectivity:

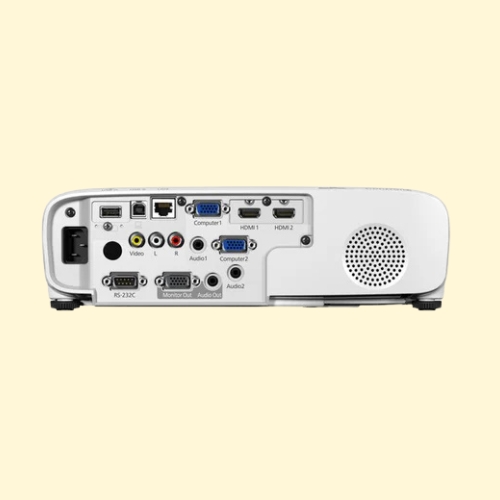

- Interface: USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), Composite in, Jack plug out, Jack plug in (2x), Cinch audio out
- USB Display Function: 2 in 1: Image/ Sound
- Epson iProjection App: Ad-Hoc / Infrastructure
Image:
- Color Light Output: 3,800 Lumen- 2,600 Lumen (economy) In accordance with IDMS15.4
- White Light Output: 3,800 Lumen In accordance with ISO 21118:2020
- Resolution: WXGA 2
- Aspect ratio: 16:10
- Contract ratio: 16,000 : 1
- Light Source: Lamp
- Lamp: UHE, 210 W, 8,000 h durability, 17,000 h durability (economy mode)
- Keystone Correction: Auto vertical: ± 30 °, Manual horizontal ± 30 °
- Color Video Processing: 10 Bits
- 2D vertical refresh rate: 100 Hz – 120 Hz
- Color Reproduction: Upto 1.07 billion colours
Optical:
- Throw ratio: 1.30 – 1.56:1
- Zoom: Manual, Factor: 1 – 1.2
- Lens: Optical
- Screen Size: 33 inches – 320 inches
- Projection Lens F number: 1.49 – 1.72
- Projection Lens Focal Length: 16.9 mm – 20.28 mm
- Offset: 10:1
Advanced Features:
- Security: Kensington lock, Security cable hole, Wireless LAN unit lock
- 2D Color modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
- Other features: AV Mute Slide, Automatic keystone correction, Built-in speaker, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjecton set-up by QR code
- Video Color Modes: Blackboard, Dynamic, Presentation, sRGB, Theatre
- Projector Control: via: AMX, Crestron, Control4, Extron
General:
- Power Consumption: 327 Watt, 225 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt
- Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
- Product Dimension: 302 x 249 x 87 mm (Width x Depth x Height)
- Product Weight: 2.7kg
- Noise Level: Normal: 37 dB (A) – Economy: 28 dB (A)
- Loud Speaker: 5 Watt
